Description

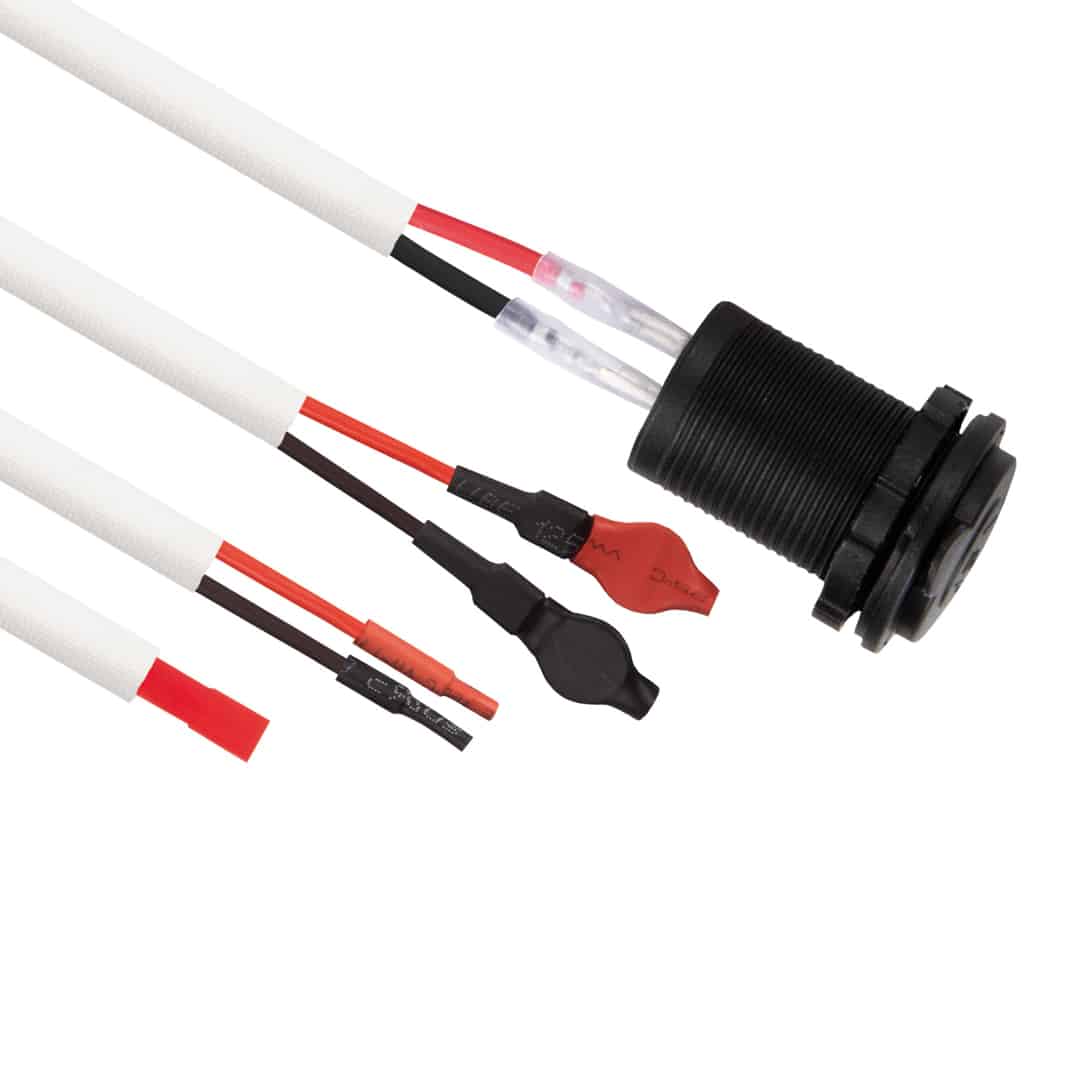

This Tracer 12V 100Ah Lithium-Ion Battery Module is the middle size module in the range, offering an excellent compromise on both price and portability. These lightweight power solutions come with multiple output leads and a fuel gauge for maximum integration with your project. These are very popular for powering remote surveillance and noise monitoring applications for long durations.

Customers will require a TR8215 charger in addition to deciding on a connection type to use with their equipment (if this isn’t already determined by the manufacturer).

All included sockets and accessories are designed to be installed within equipment or a portable case with ease.

Deciding between a Lithium-Ion or a LiFePO4 module?

Lithium-Ion is usually the go to choice if you need the smallest and lightest module possible. LiFePO4 offers a more stable voltage drain and over 2x longer lifespan, but costs slightly more and is a bit heavier and bulkier. Please consider the main factors required for your application or project based on this information.

External LED Fuel Gauge

This module comes with an LED fuel gauge to enhance flexibility when integrating it into equipment, view our installation demo below.

Specifications

Weight 6000 g
Dimensions 215 × 242 × 73 mm
Manufacturer

Tracer

Chemistry

Lithium-Ion (Li-Ion)

Nominal Voltage

12V

Capacity

100Ah

Charge Time

13 Hours

Lifespan

500+ Cycles

Watt-Hours (Wh)

1200Wh

Maximum Continuous Discharge

20A

Max Peak Current (for 10mS)

50A

Discharge Cut-off Voltage

8.25V

Charging Voltage

12.6V

Temperature Range (Charging)

0ºC – 45ºC

Temperature Range (In Use)

-10ºC – 60ºC

Self Discharge Rate

< 0.5% per day

What's in the Box

The Range

Tracer 12v 50ah Lithium Ion Battery Module

Tracer 12V 50Ah Lithium-Ion Battery Module

Tracer 12V 100Ah Lithium-Ion Battery Module

Tracer 12V 100Ah Lithium-Ion Battery Module

Tracer 12V 150Ah Lithium-Ion Battery Module

Tracer 12V 150Ah Lithium-Ion Battery Module

Voltage 12V 12V 12V
Capacity 50Ah 100Ah 150Ah
Watt Hours 600Wh 1200Wh 1800Wh
Dimensions 202 x 133 x 74 mm 215 x 242 x 73 mm 242 x 310 x 73 mm
Weight 3300 g 6000 g 9000 g
Charge Times (Hours) – 10A 7 13 20
Run Times (Hours) – 100W 6 12 18
Max Discharge Current – Continuous 20A 20A 20A
Max Discharge Current – Peak (for 10ms) 50A 50A 50A
